Product description

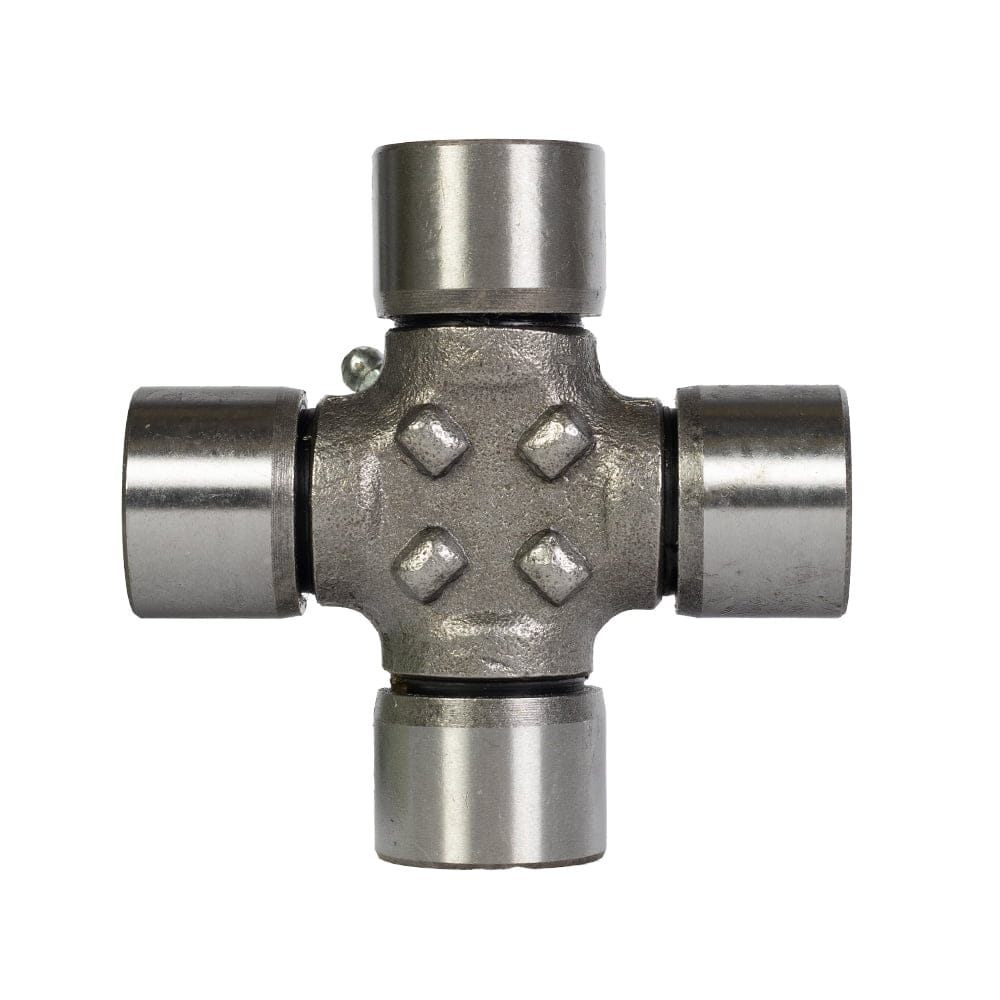

The drive shaft cross member is a key component in the mechanism of the transmission In many vehicles and machines. It is a cross-connector that allows the transmission of power from the engine to the drive shaft while allowing the angle between connected shafts to change. These products are widely used in cars, trucks, agricultural machinery and heavy industry. The high quality of the cross-brace ensures efficient and quiet operation of the gearbox and minimizes the risk of failure. The bearings are protected from the outside of the fork by rings.

Comparison no:

  • GRANIT: 397601622

Specification

Weight 0.746 kg
Dimensions 9 × 9 × 4 cm
Bearing diameter

30.20 mm

Width of the crossbar

91.30 mm

Segers included

Yes

Application

PTO power take-off

Seal

Rubber

Bowl type

Hard
