Miscellaneous cross-brace 27×94 32×76 PTO Shaft Relay

101.04 zł

3 in stock
Cat. no: CZR01588

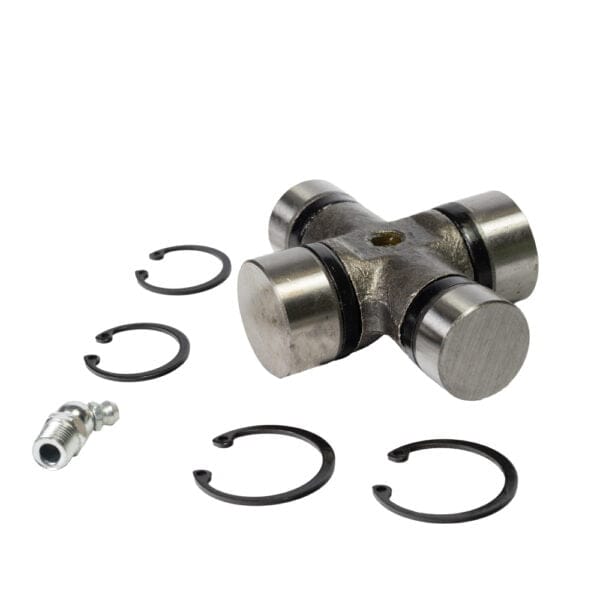

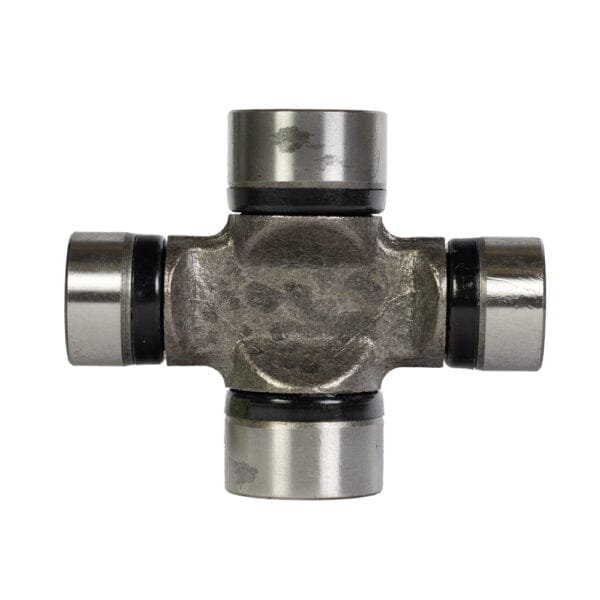

Cross-arm cross-piece of the drive shaft 27x94 32x76

see more
Quantity Small amount
Shipping within: 24 godzin
Quantity:
101.04 zł

Maybe you needalso:

Product description

The drive shaft cross member is a key component in the mechanism of the transmission In many vehicles and machines. It is a cross-connector that allows the transmission of power from the engine to the drive shaft while allowing the angle between connected shafts to change. These products are widely used in cars, trucks, agricultural machinery and heavy industry. The high quality of the cross-brace ensures efficient and quiet operation of the gearbox and minimizes the risk of failure. The bearings are protected from the outside of the fork by rings.

Comparison no:

  • SIPMA: 60620/01-06-100
  • WALTERSCHAID: 1116550, 2106.141
  • WEASLER: 201-7694


Specification

Weight 0.616 kg
Dimensions 8.5 × 8.5 × 4 cm
Bearing diameter

27.02×94.00 mm
Width of the crossbar

32.00×75.90 mm
Segers included

Yes
Application

PTO power take-off with a breaking angle of 80 °
Seal

Rubber
Bowl type

Hard
