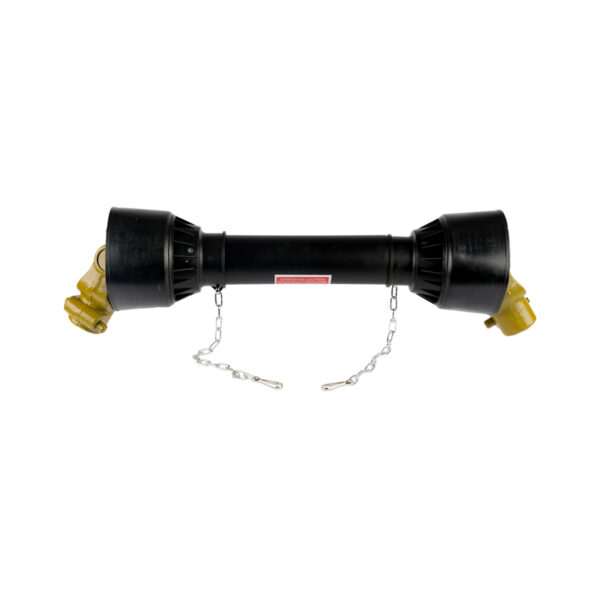

Product description

PTO shafts are used to transfer torque from the tractor's power take-off (PTO) to the power take-off shaft of the machine (WPM) that is attached to said tractor. Shafts are an important component of trailers and agricultural vehicles. At the same time, they are a guarantee of reliability and safe operation. They also protect the machine's drive components when it is running.

The basic division includes:

  • Basic PTO-telescopic shaft s - they are used when the mutual positioning of the PTO and PTO shafts with respect to each other does not exceed 25° of the angle of articulation breaking during continuous operation.
  • Wide-angle PTO shafts - these are used when the mutual positioning of the PTO and PTO shafts can lead to joint breakage of up to 50° of joint breakage angle during continuous operation and 50° during momentary operation.

You can also distinguish between milled shafts, tubular shafts and tubular-triangular shafts - they differ in their tube profiles. Individual shafts may also have different torque values and a different number of wide-angle joints.

At Exparto, we offer both complete shafts and the parts and accessories designed for them: cross-bearers, joints, couplings. The individual components are made of high-quality materials (e.g. of high-carbon steel), and the shaft covers themselves are not susceptible to mechanical damage, low temperatures or UV radiation. What's more, some components are equipped with special heavy-duty bearings.

EXAMPLE APPLICATION:

✅The sprayer (models that do not have high power requirements).

✅ Spreader (models that do not have high power requirements)

Specification

Weight 5.5 kg
Dimensions 76 × 13.5 × 13.5 cm
Shaft extension

20-25 cm

Krzyżak
Maximum torque

215 Nm

Attachment to Tractor

1 3/8" Z6

Attachment to Machine

1 3/8" Z6

Clutch

No
