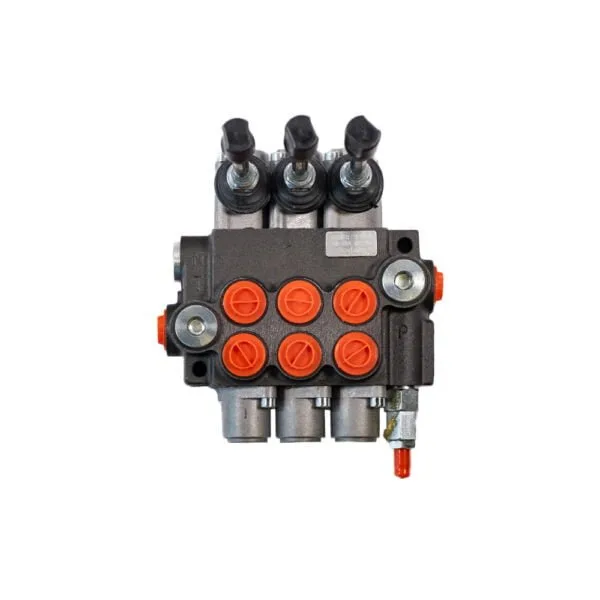

Hydraulic distributor 03P40

246.00 zł

344 in stock

Cat. no: HYD-06-00003

The 03P40 hydraulic distributor will be perfect for a wide variety of hydraulic systems - both in industry and construction, as well as in agriculture itself.

see more
Quantity A large number of
Shipping within: 24 godzin

Informacja GPSR: produkt wprowadzony do obrotu na terenie UE przed 13.12.2024 roku

Quantity:
246.00 zł

Maybe you needalso:

Product description

Hydraulic distributor 03P40 - monobloc, providing the ability to control three-position levers, with a flow rate of 40 l/minute. It is distinguished by its robust and compact design, which allows it to be connected in series with other similar devices using a pressure sleeve. It is a three-section model, suitable for controlling single-acting and double-acting actuators. It also features high versatility and stable operation.

The 03P40 hydraulic distributor will be perfect for a wide variety of hydraulic systems - both in industry and construction, as well as in agriculture itself. It will excel in tractors, loaders, excavators, construction and agricultural machinery, HDS loaders, sprayers, cyclops, turners or even sweepers. Add that the whole thing is easy to assemble yourself.

The levers can be in different positions:
  • neutral (vertical) position
  • working position (oblique forward),
  • working position (diagonal backwards).

Specification

Weight6.4 kg
Dimensions22 × 19.5 × 10 cm
Liczba sekcji

3

Rozstaw sekcji

35 mm

Maksymalne ciśnienie na powrocie

50 bar

Maksymalne ciśnienie na zasilaniu

250 bar

Maksymalne ciśnienie na sekcjach

300 bar

Maksymalny przepływ

40 L/min

Port przyłączeniowy zasilanie

1/2''

Port przyłączeniowy powrót

1/2''

Porty przyłączeniowe sekcje

1/2''

Dopuszczalna temperatura otoczenia

-40 C to +60 C

Dopuszczalna temperatura oleju

-15 C to +80 C
