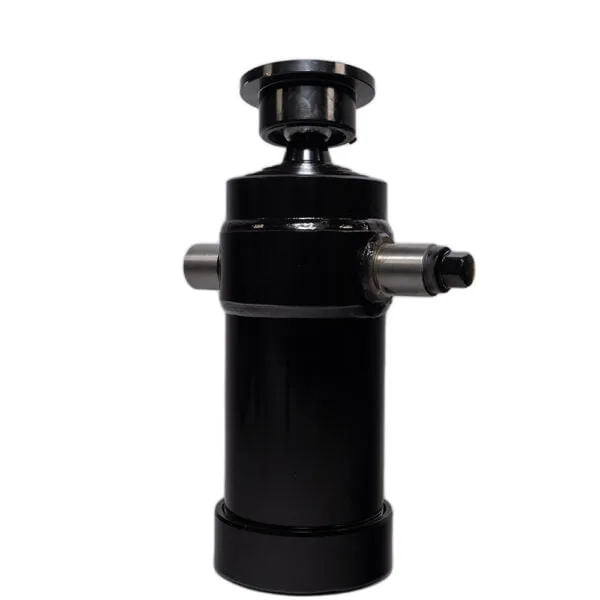

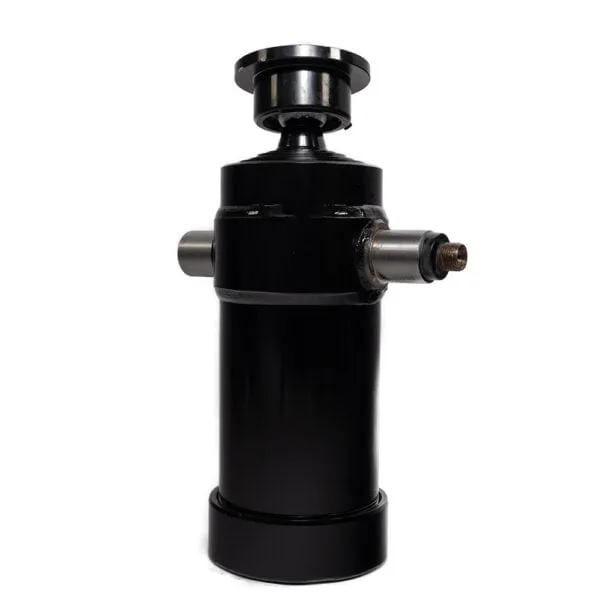

Product description

Telescopic cylinders are a distinctive type of hydraulic cylinder. They ensure correct operation of the mechanism even in the most demanding operating conditions. They are capable of lifting the heaviest loads, as their maximum working pressure range is between 16-32 Mpa (160-320 bar).

Telescopic cylinders have a greater stroke range during cylinder operation, compared to standard hydraulic motors. They are also equipped with several built-in pistons that extend one at a time - so the extension (so-called working stroke) is very large, despite their short length. They are also one-sided, because in this case the oil acts under pressure on one side, causing the individual actuator components to extend. The different models of telescopic actuators differ, among other things. stroke, as well as the number of cylinders.

In order for telescopic actuators to perform perfectly for a long time, they should be made of high-quality materials - they allow you to extend the life of the entire system. Add that telescopic cylinders are mainly used in the production of agricultural trailers. However, they will also excel in other industries, including construction, mining, industrial and aerospace machinery, and even in the broader transportation industry.

Specification

Weight 30 kg
Total length of the actuator when unfolded

1433 mm

Folded actuator length

383 mm

Actuator stroke

1050 mm

Outer diameter of the actuator

125 mm

Maximum load capacity

8 T

Female thread of oil connection

M22x1.5

Maximum working pressure

160 Bar

Start-up pressure

0.5 Mpa

Piston extension speed

0.5 m/s

Permissible ambient temperature

-40 °C to +60 °C

Permissible oil temperature

-15 °C to +80 °C
